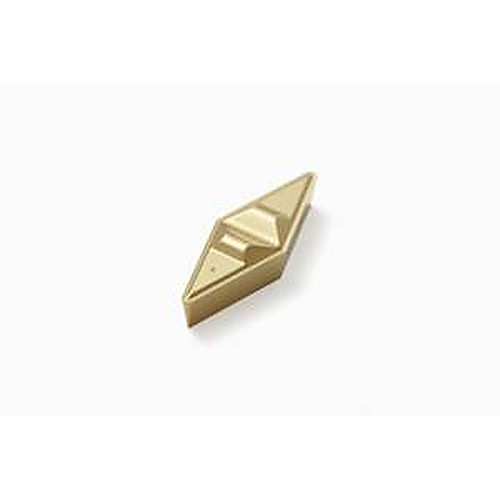

VCGR 331 Single-sided|R CP200, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; VCGR331 CP200 ; 16.6 mm Length ; 3/8″ IC ; 1/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | CP200 |
| Insert Style | VCGR | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 16.6 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | Single-sided|R |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 5 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | TiN | TiAlN | |
Product Features
| Family Description | 0 | Country of Origin | India |
Shipping Info
Package Weight
0.024
