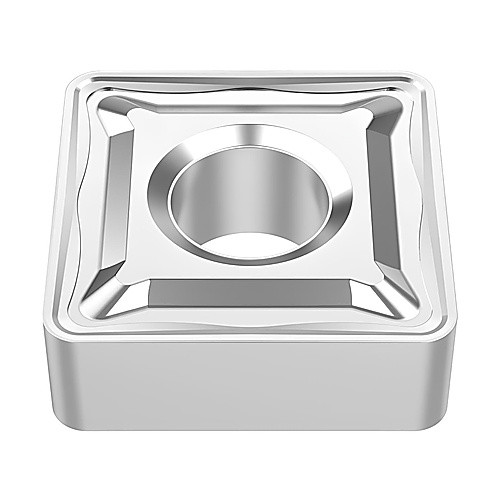

SNMG 322 M5 TP2501, 0.031″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TICN|Al2O3, Square, Turning Indexable Insert
Turning Insert; Square x 3/8″ IC × 0.031″ Corner Radius ; TP2501 ; Carbide ; | Al2O3 | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | SNMG | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.031″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 322 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 3/8″ | Chip Breaker Type | M5 |
| Insert Thickness (S) | 1/8″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG 322-M5 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.007
