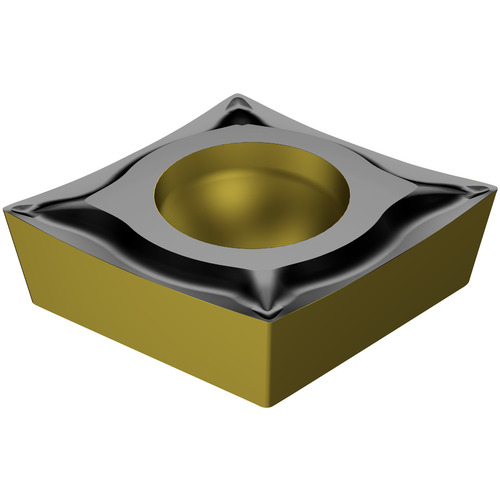

CCGT2151UM 1515 Insert
Turning Insert; 80 Diamond × 1/4″ IC × 0.016″ Corner Radius ; 1515 ; Carbide ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | 1515 |
| Insert Style | CCGT | Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.016″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 2151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | UM |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | Al2O3 | TiN | TiCN | | Model No | CCGT2151-UM |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
