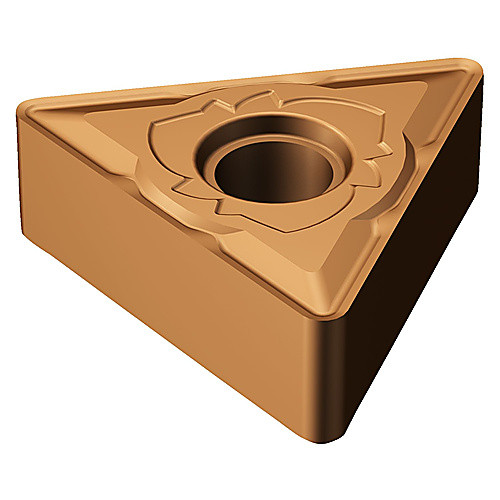

TNMG433SM 1125 TURNING
Turning Insert; Triangle x 1/2″ IC × 0.047″ Corner Radius ; 1125 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | TNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Chip Breaker Type | SM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TNMG 433-SM |
| Coating | TiAlN | Model No | TNMG433-SM |
| Grade | 1125 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
.65000
Package Width
.65000
Package Height
.21000
Package Weight
0.324
