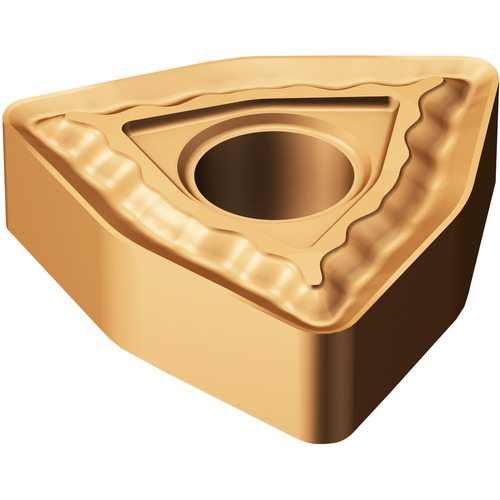

WNMG 432 QM 1115, 0.032″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TiAlN|AlCr2O3, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 1/2″ IC × 0.032″ Corner Radius ; 1115 ; Carbide ; | TiAlN | AlCr2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | WNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.032″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 432 | Chip Breaker Type | QM |
| Insert Thickness (S) | 0.187″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Trigon |
| Cutting Edge Material | Carbide | Series/List # | WNMG 432-QM |
| Coating | | TiAlN | AlCr2O3 | | Model No | WNMG432-QM |
| Grade | 1115 |
Product Features
| Family Description | 0 | Country of Origin | Japan |
Shipping Info
Package Length
.60000
Package Width
.60000
Package Height
.20000
Package Weight
0.245
