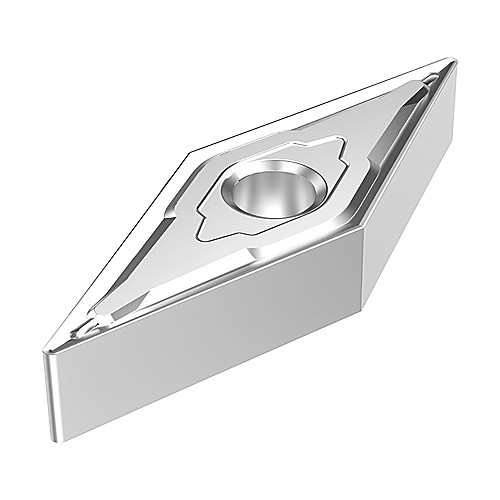

VNMG332-M3 TP1501
Turning Insert; 35 Diamond ; 16 mm Length × 3/8″ IC × 1/32″ Corner Radius ; TP1501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | VNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 332 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 16 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M3 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | VNMG 332-G|Double-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
1.00000
Package Width
.30000
Package Height
.10000
Package Weight
0.025
