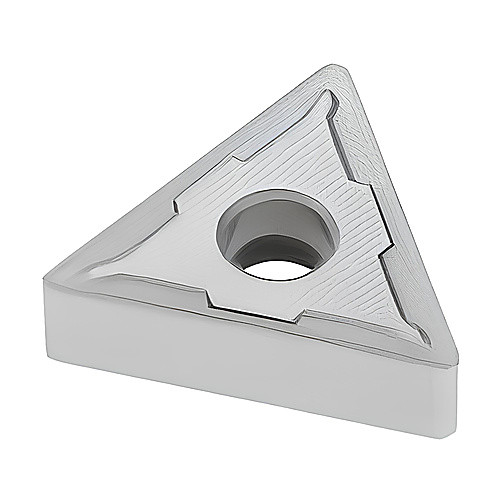

TNMG543-M5 GRADE TP1501
Turning Insert; TNMG543-M5 TP1501 ; 27.5 mm Length ; 5/8″ IC ; 3/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | TNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 543 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 27.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | TiCN | Al2O3 | Cr | |
Product Features
| Family Description | 0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.057
