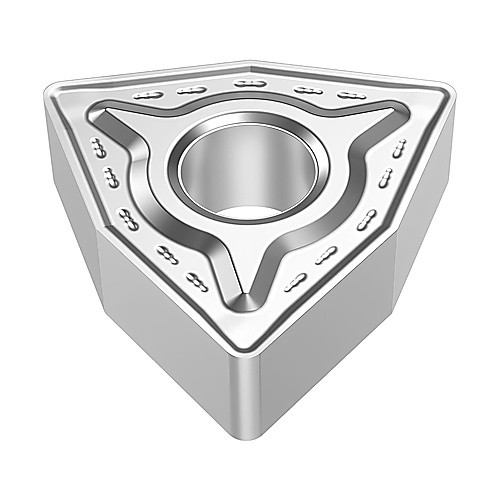

WNMG 432 M6 TP1501, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Trigon ; 8.7 mm Length × 1/2″ IC × 1/32″ Corner Radius ; TP1501 ; Carbide ; | TiCN | Al2O3 | Cr |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | WNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 432 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 8.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | M6 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Trigon |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | WNMG 432-G|Double-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
