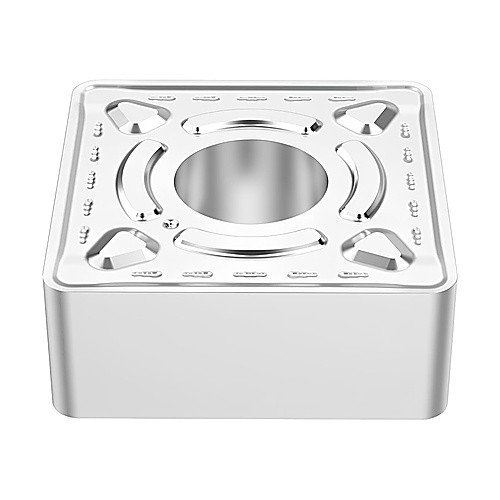

SNMG543-M6 GRADE TP1501
Turning Insert; Square ; 15.88 mm Length × 15.88 mm IC × 1.19 mm Corner Radius ; TP1501 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | SNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1.19 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 543 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 15.88 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 6.35 mm | Chip Breaker Type | M6 |
| Inscribed Circle Diameter (IC) | 15.88 mm | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | TiCN | Al2O3 | Cr | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.042
