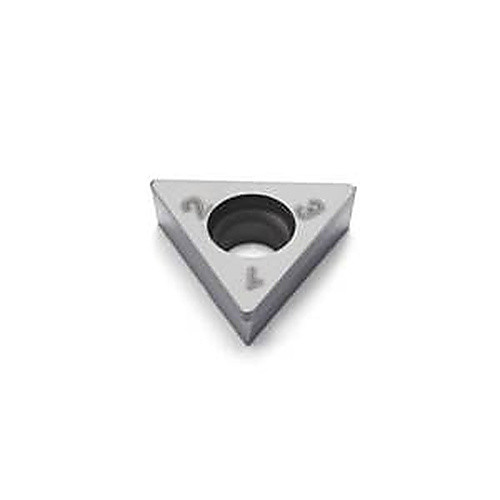

TCGW 1.81.51S-00420-LF GRADE CBN200
Turning Insert; TCGW18151S00420LF 0 CBN20 ; 7/32″ IC ; 0.015″ Corner Radius ; CBN ; Neutral ; Uncoated
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Coating | Uncoated |
| Insert Style | TCGW | Grade | CBN20 |
| Corner Radius (RE) | 0.015″ | Tool Type | Turn Positive Inserts |
| Insert Size | 90204 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.3543″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.094″ | Chip Breaker Type | Flat Top |
| Inscribed Circle Diameter (IC) | 7/32″ | Quantity | 1 |
| Cutting Edge Material | CBN | Shape | Triangle |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
