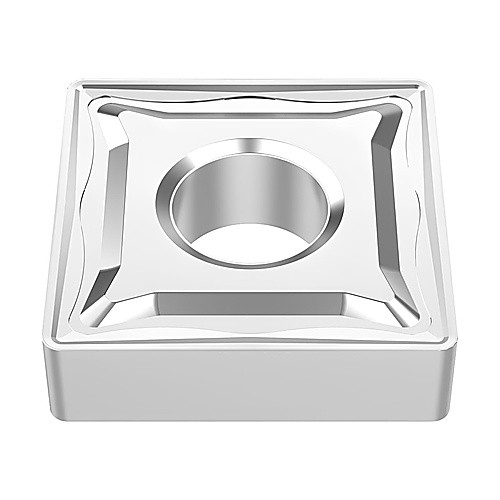

SNMG 544 M5 TP2501, 1/16″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Square, Turning Indexable Insert
Turning Insert; Square ; 15.88 mm Length × 5/8″ IC × 1/16″ Corner Radius ; TP2501 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | SNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/16″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 544 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 15.88 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | SNMG 544-Double-sided|G |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.042
