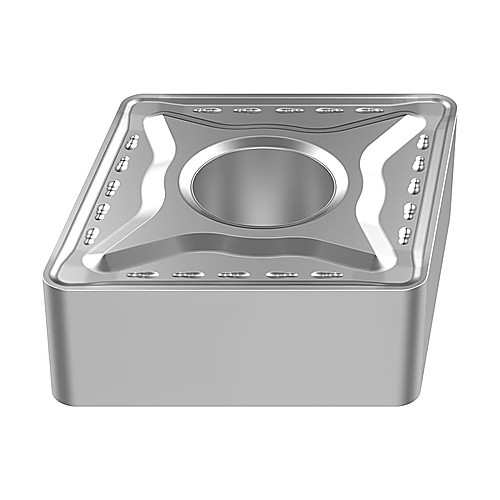

CNMG 544 M6 TP2501, 1/16″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CNMG544-M6 TP2501 ; 16.1 mm Length ; 5/8″ IC ; 1/16″ Corner Radius ; Carbide ; Neutral
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | CNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/16″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 544 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 16.1 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/4″ | Chip Breaker Type | M6 |
| Inscribed Circle Diameter (IC) | 5/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | CNMG 544-Double-sided|G |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.042
