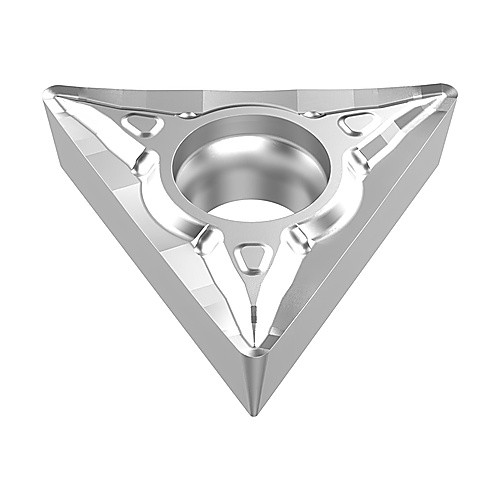

TCMX 32.52 F1 TP1501, 0.031″ Corner Radius, 0.156″ Thick, 3/8″ Inscribed Circle, TICN|Al2O3, Turning Indexable Insert
Turning Insert; TCMX32.52W-F1 TP1501 ; 3/8″ IC ; 0.031″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | TCMX | Tool Type | Turn Positive Inserts |
| Corner Radius (RE) | 0.031″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.52 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.6496″ | Chip Breaker Type | F1 |
| Insert Thickness (S) | 0.156″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | TCMX 32.52-F1 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
