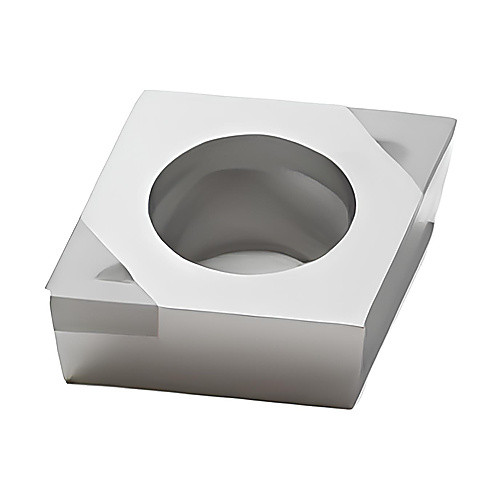

CCGW 21.51 None|W CBN010, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; CCGW 21.51E-L1-B CBN010 ; 6.5 mm Length ; 1/4″ IC ; 1/64″ Corner Radius ; PCBN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Hard Materials | | Grade | CBN010 |
| Insert Style | CCGW | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 21.51 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 6.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | None|W |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 1 |
| Cutting Edge Material | PCBN | Shape | 80° Diamond |
| Coating | UNCOATED | Series/List # | CCGW 21.51-None|W |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.002
