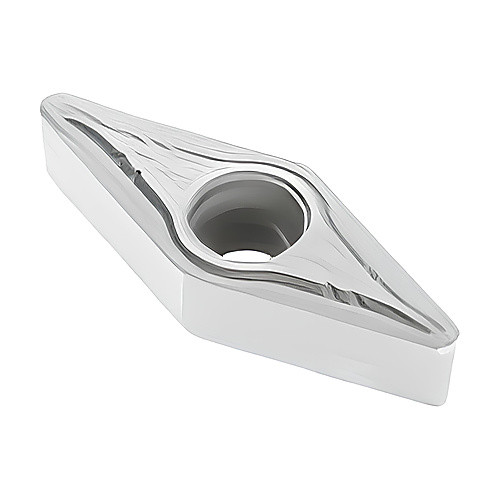

VBMT 21.51 F1 TP2501, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, Turning Indexable Insert
Turning Insert; VBMT21.51-F1 TP2501 ; 11 mm Length ; 1/4″ IC ; 1/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | VBMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 21.51 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 11 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | F1 |
| Inscribed Circle Diameter (IC) | 1/4″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | VBMT 21.51-Single-sided|T |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.004
