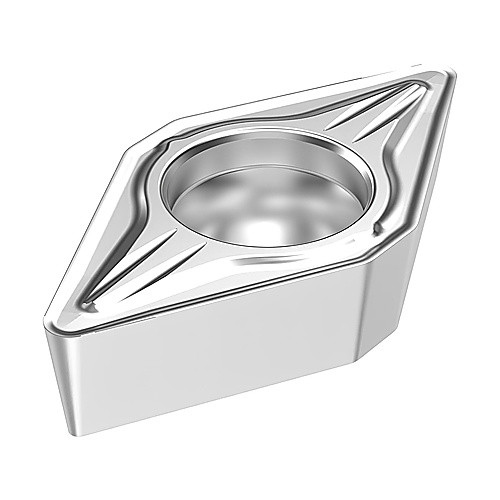

DCMT 32.52 M5 TP1501, 1/32″ Corner Radius, 5/32″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; DCMT32.52-M5 TP1501 ; 11.6 mm Length ; 3/8″ IC ; 1/32″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | DCMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 32.52 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 11.6 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 5/32″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | DCMT 32.52-T|Single-sided |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.009
