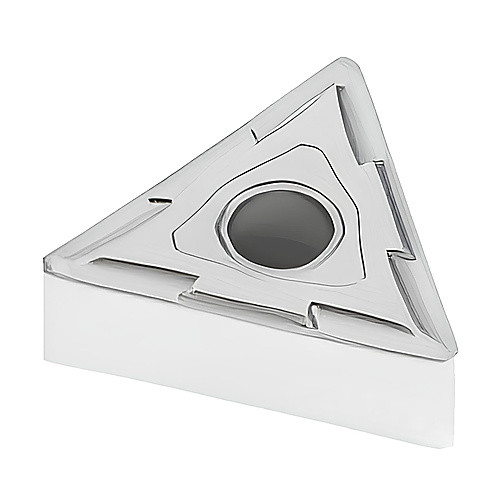

TNMG 333 MF2 TP2501, 3/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, Turning Indexable Insert
Turning Insert; TNMG333-MF2 TP2501 ; 16.5 mm Length ; 3/8″ IC ; 3/64″ Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | TNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 333 | Number of Cutting Edges | 6 |
| Cutting Edge Length (L) | 16.5 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MF2 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Triangle |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | TNMG 333-Double-sided|G |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.015
