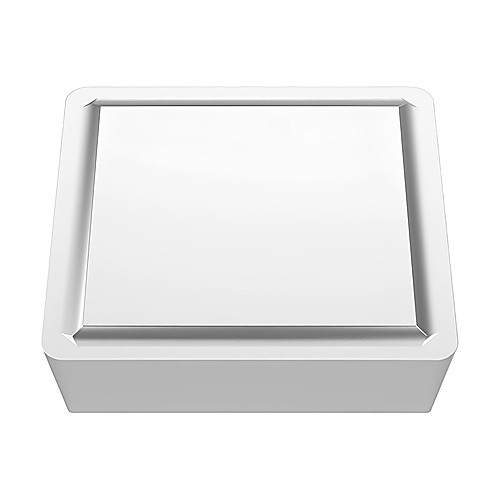

SPMR 322 F1 TP2501, 1/32″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, Square, Turning Indexable Insert
Turning Insert; Square ; 9.52 mm Length × 3/8″ IC × 1/32″ Corner Radius ; TP2501 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | SPMR | Tool Type | Turning Insert |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 11 Degrees |
| Insert Size | 322 | Number of Cutting Edges | 4 |
| Cutting Edge Length (L) | 9.52 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | F1 |
| Inscribed Circle Diameter (IC) | 3/8″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | SPMR 322-Single-sided|R |
Product Features
| Family Description | 0 | Country of Origin | India |
Shipping Info
Package Weight
0.009
