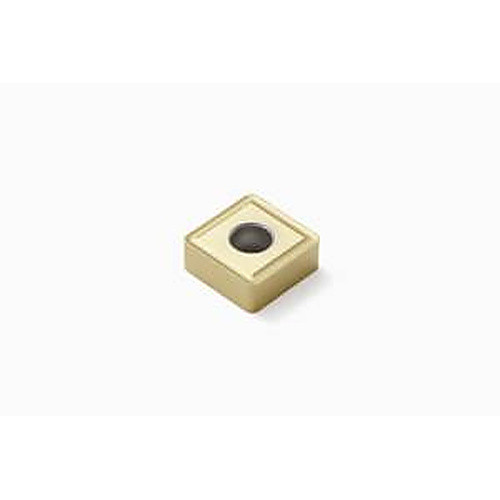

SNMG 433 MR4 TS2500, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Square, Turning Indexable Insert
Turning Insert; Square ; 12.7 mm Length × 1/2″ IC × 3/64″ Corner Radius ; TS2500 ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | TS2500 |
| Insert Style | SNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 433 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | MR4 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | TiN | TiAlN | | Series/List # | SNMG 433-G|Double-sided |
Product Features
| Family Description | 0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.022
