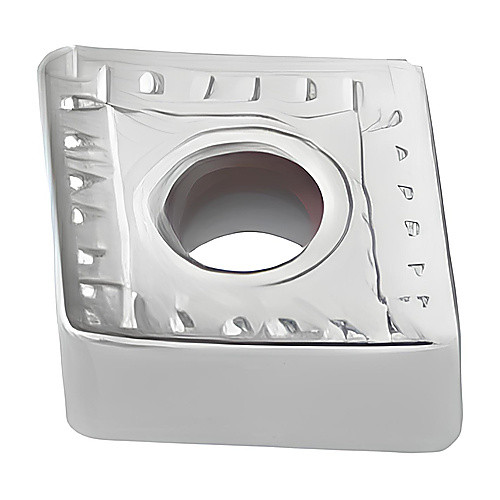

CNMM 544 R5 TP1501, 0.062″ Corner Radius, 1/4″ Thick, 5/8″ Inscribed Circle, TICN|Al2O3, Turning Indexable Insert
Turning Insert; CNMM544-R5 TP1501 ; 5/8″ IC ; 0.062″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Grade | TP1501 |
| Insert Style | CNMM | Tool Type | Turn Negative Inserts |
| Corner Radius (RE) | 0.062″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 544 | Cutting Direction (HAND) | Neutral |
| Cutting Edge Length (L) | 0.6339″ | Chip Breaker Type | R5 |
| Insert Thickness (S) | 1/4″ | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 5/8″ | Shape | 80° Diamond |
| Cutting Edge Material | Carbide | Series/List # | CNMM 544-R5 |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | 0 | Country of Origin | Czech Rep. |
Shipping Info
Package Weight
0.04
