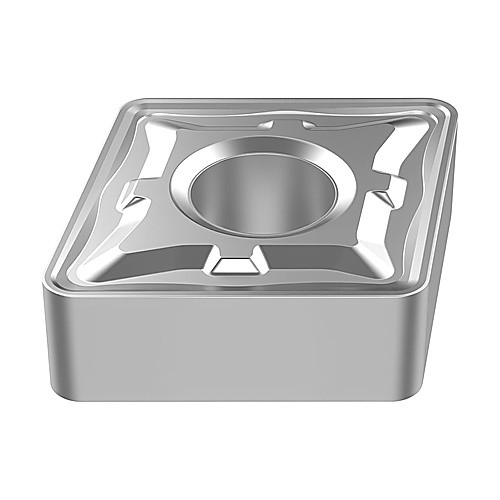

CNMG434-M5 GRADE TP1501
Turning Insert; CNMG434-M5 TP1501 ; 1/2″ IC ; 0.062″ Corner Radius ; Carbide ; Neutral ; TiCN+Al2O3
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Cast Iron | | Coating | | Al2O3 | TiCN | |
| Insert Style | CNMG | Grade | TP1501 |
| Corner Radius (RE) | 0.062″ | Tool Type | Turn Negative Inserts |
| Insert Size | 434 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.5079″ | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 0.187″ | Chip Breaker Type | M5 |
| Inscribed Circle Diameter (IC) | 1/2″ | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.02
