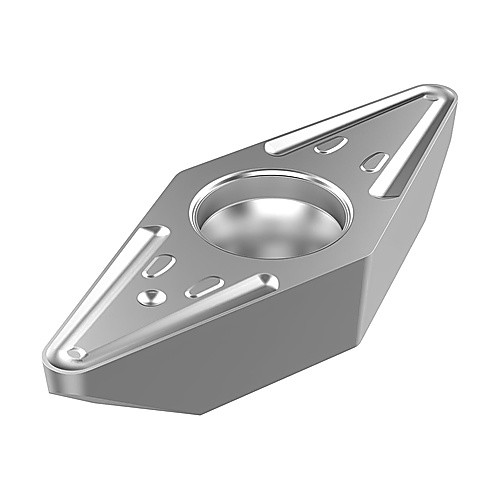

VBMT 333 M3 TP2501, 1.19 mm Corner Radius, 4.76 mm Thick, 9.52 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; VBMT333-M3 TP2501 ; 16 mm Length ; 9.52 mm IC ; 1.19 mm Corner Radius ; Carbide
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Grade | TP2501 |
| Insert Style | VBMT | Tool Type | Turning Insert |
| Corner Radius (RE) | 1.19 mm | Clearance Angle Major (AN) | 5 Degrees |
| Insert Size | 333 | Number of Cutting Edges | 2 |
| Cutting Edge Length (L) | 16 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | M3 |
| Inscribed Circle Diameter (IC) | 9.52 mm | Quantity | 10 |
| Cutting Edge Material | Carbide | Shape | 35° Diamond |
| Coating | | TiCN | Al2O3 | Cr | | Series/List # | VBMT 333-Single-sided|T |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Weight
0.018
