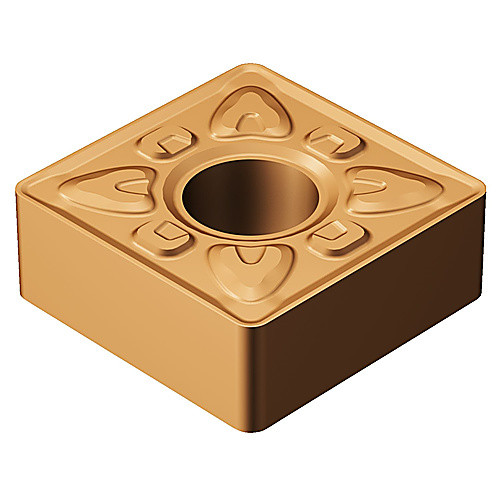

SNMG 433 XMR GC15, 0.047″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TiAlN, Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 0.047″ Corner Radius ; GC15 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.047″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Chip Breaker Type | XMR |
| Insert Thickness (S) | 0.187″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | SNMG 433-XMR |
| Coating | TiAlN | Model No | SNMG433-XMR |
| Grade | GC15 |
Product Features
| Family Description | 0 | Country of Origin | India |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.18900
Package Weight
.256
