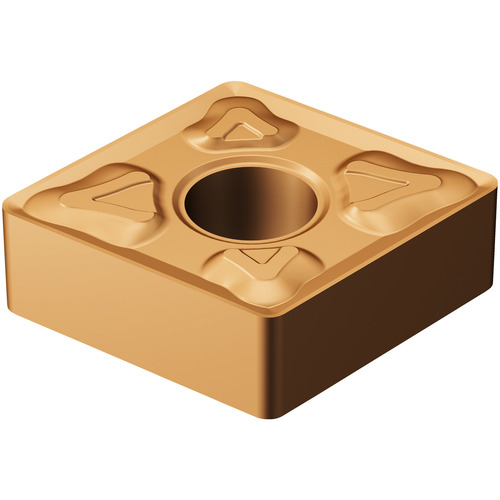

CNMG 431 XM GC15, 0.016″ Corner Radius, 0.187″ Thick, 1/2″ Inscribed Circle, TiAlN, Turning Indexable Insert
Turning Insert; 80 Diamond × 1/2″ IC × 0.016″ Corner Radius ; GC15 ; Carbide ; TiAlN
Additional Tariff Surcharge of 8 %
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 0.203″ |
| Insert Style | CNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 0.016″ | Cutting Direction (HAND) | Neutral |
| Insert Size | 431 | Chip Breaker Type | XM |
| Insert Thickness (S) | 0.187″ | Quantity | 1 |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | 80° Diamond |
| Cutting Edge Material | Carbide | Series/List # | CNMG 431-XM |
| Coating | TiAlN | Model No | CNMG431-XM |
| Grade | GC15 |
Product Features
| Family Description | 0 | Country of Origin | Sweden |
Shipping Info
Package Length
.50000
Package Width
.50000
Package Height
.19000
Package Weight
0.245
