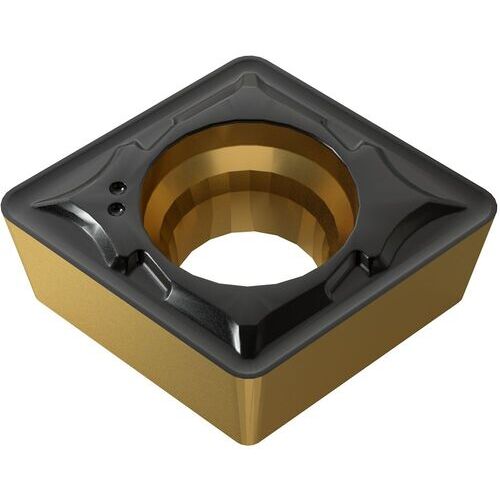

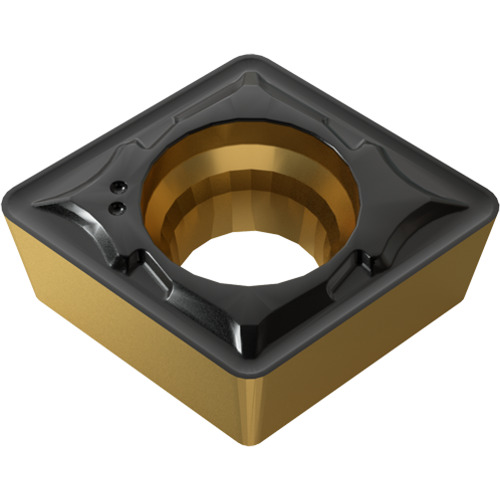

CCMT09T308-UG-YG3030/CCMT32.52-UG
Turning Insert; Rhombic 80 ; 0.362″ Length × 3/8″ IC × 1/32″ Corner Radius ; YG3030 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turning Positive Insert |
| Insert Style | CCMT | Depth of Cut Maximum (APMX) | 3.2″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.362″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | UG |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rhombic 80° |
| Coating | | Al2O3 | TiCN | | Series/List # | CCMT |
| Grade | YG3030 | Cutting Edge Effective Length (LE) | 0.362″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
4
Package Width
1.75
Package Height
0.625
Package Weight
0.01
