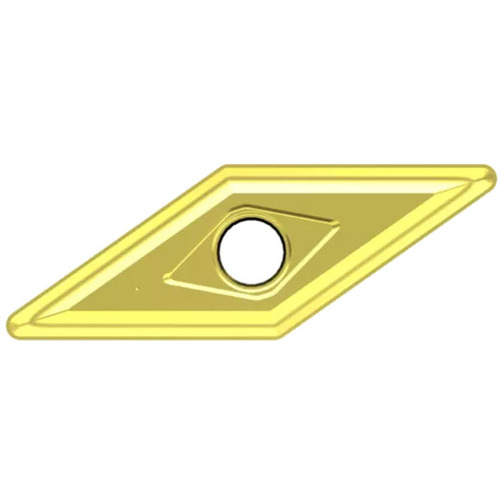

VNMG160412-UM-YG3020/VNMG333-UM
| Applicable Material | | Steel | | Tool Type | Turning Negative Insert |
| Insert Style | VNMG | Depth of Cut Maximum (APMX) | 3″ |
| Corner Radius (RE) | 3/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.622″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | UM |
| Inscribed Circle Diameter (IC) | 3/8″ | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Shape | Rhombic 35° |
| Coating | | Al2O3 | TiCN | | Series/List # | VNMG |
| Grade | YG3020 | Cutting Edge Effective Length (LE) | 0.622″ |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
5.625
Package Width
2.375
Package Height
0.75
Package Weight
0.1
