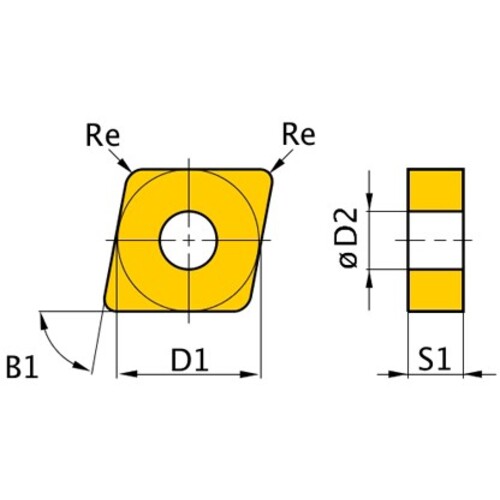

CNGA 433 flat_top BC8110, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Turning Indexable Insert
Turning Insert; 80 Rhombic × 12.7 mm IC × 1.2 mm Corner Radius ; BC8110 ; CBN
| Applicable Material | | Hard Materials | | Grade | BC8110 |
| Insert Style | CNGA | Fixing Hole Diameter (D1) | 5.16 mm |
| Corner Radius (RE) | 1.2 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 433 | Chip Breaker Type | flat_top |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 12.7 mm | Shape | 80° Rhombic |
| Insert Included Angle (EPSR) | 80 Degrees | Series/List # | BC8110 |
| Cutting Edge Material | CBN | Cutting Edge Effective Length (LE) | 2.3 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.1
