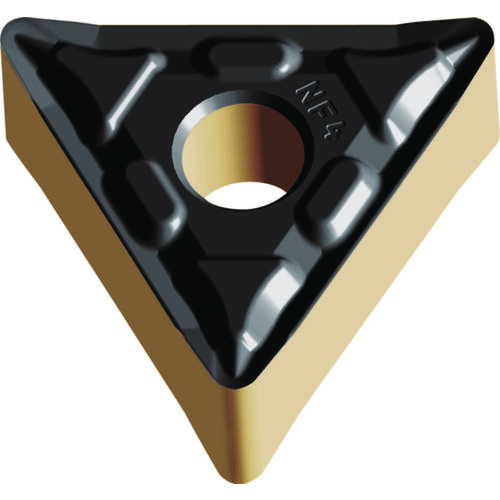

TNMG 331 Double-sided|G WSM10, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, 60° Triangle, Turning Indexable Insert
Turning Insert; 60 Triangle ; 0.65″ Length × 3/8″ IC × 1/64″ Corner Radius ; WSM10 ; Carbide ; | ZrCN | TiAlN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | WSM10 |
| Insert Style | TNMG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Tool Type | Turning Insert |
| Insert Size | 331 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.65″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | Double-sided|G |
| Cutting Edge Material | Carbide | Shape | 60° Triangle |
| Coating | | ZrCN | TiAlN | Al2O3 | | Series/List # | TNMG-WSM10 |
Product Features
| Family Description | TNMG331-NF4 WSM10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.174
