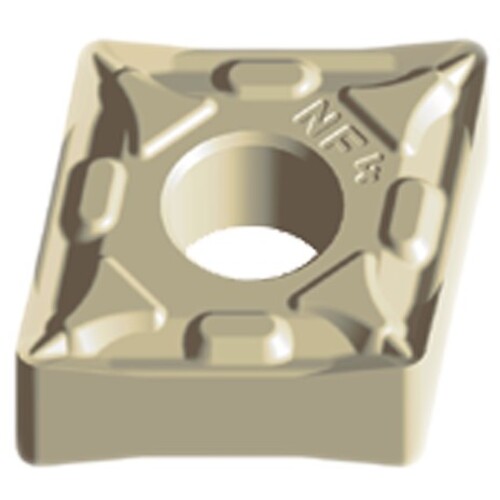

CNMG432-NF4 GRADE WSM10
Turning Insert; 80 Diamond ; 0.508″ Length × 1/2″ IC × 1/32″ Corner Radius ; WSM10 ; Carbide ; | ZrCN | TiAlN | Al2O3 |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | | Grade | WSM10 |
| Insert Style | CNMG | Fixing Hole Diameter (D1) | 13/64″ |
| Corner Radius (RE) | 1/32″ | Tool Type | Turning Insert |
| Insert Size | 432 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | G|Double-sided |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Coating | | ZrCN | TiAlN | Al2O3 | | Series/List # | CNMG-WSM10 |
Product Features
| Family Description | CNMG432-NF4 WSM10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.225
