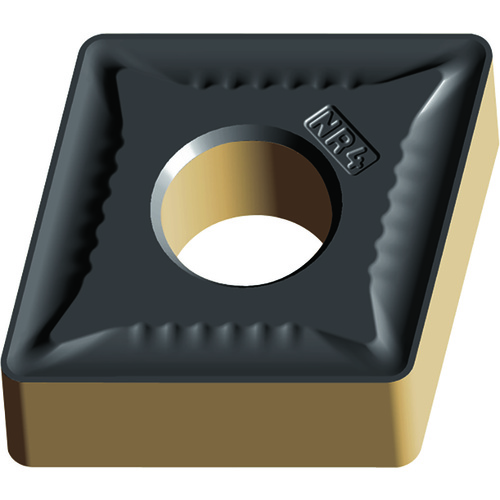

CNMG 433 Double-sided|G WAM30, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, 80° Diamond, Turning Indexable Insert
Turning Insert; 80 Diamond ; 0.508″ Length × 1/2″ IC × 3/64″ Corner Radius ; WAM30 ; Carbide
Additional Tariff Surcharge of 8 %
| Insert Style | CNMG | Fixing Hole Diameter (D1) | 13/64″ |
| Corner Radius (RE) | 3/64″ | Tool Type | Turning Insert |
| Insert Size | 433 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 0.508″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | Double-sided|G |
| Cutting Edge Material | Carbide | Shape | 80° Diamond |
| Grade | WAM30 | Series/List # | CNMG-WAM30 |
Product Features
| Family Description | CNMG433-NR4 WAM30 | Country of Origin | Germany |
Shipping Info
Package Weight
0.234
