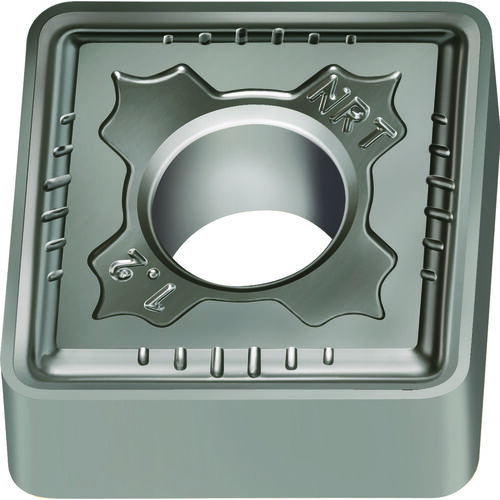

SNMG 433 G|Double-sided WS10, 3/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, Square, Turning Indexable Insert
Turning Insert; Square ; 1/2″ Length × 1/2″ IC × 3/64″ Corner Radius ; WS10 ; Carbide ; UNCOATED
Additional Tariff Surcharge of 8 %
| Applicable Material | | Super-Alloys / Titanium | | Grade | WS10 |
| Insert Style | SNMG | Fixing Hole Diameter (D1) | 13/64″ |
| Corner Radius (RE) | 3/64″ | Tool Type | Turning Insert |
| Insert Size | 433 | Clearance Angle Major (AN) | 0 Degrees |
| Cutting Edge Length (L) | 1/2″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | G|Double-sided |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | UNCOATED | Series/List # | SNMG-WS10 |
Product Features
| Family Description | SNMG433-NRT WS10 | Country of Origin | Germany |
Shipping Info
Package Weight
0.245
