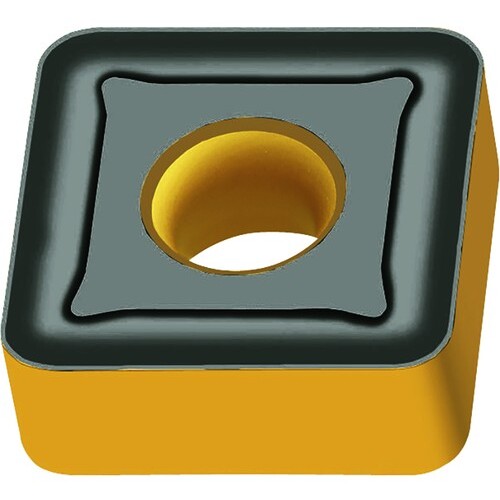

SNMG 120412 NM5 WAK30, 1.2 mm Corner Radius, 4.76 mm Thick, 0.5 mm Inscribed Circle, TiCN+Al2O3+(TiN), Square, Turning Indexable Insert
Turning Insert; Square ; 12.7 mm Length × 0.5 mm IC × 1.2 mm Corner Radius ; WAK30 ; | Al2O3 | TiN | TiCN |
Additional Tariff Surcharge of 8 %
| Applicable Material | | Cast Iron | | Fixing Hole Diameter (D1) | 5.16 mm |
| Insert Style | SNMG | Tool Type | Turning Insert |
| Corner Radius (RE) | 1.2 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 120412 | Number of Cutting Edges | 8 |
| Cutting Edge Length (L) | 12.7 mm | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | NM5 |
| Inscribed Circle Diameter (IC) | 0.5 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Shape | Square |
| Coating | | Al2O3 | TiN | TiCN | | Series/List # | SNMG-WAK30 |
| Grade | WAK30 |
Product Features
| Family Description | SNMG433-NM5 WAK30 | Country of Origin | Germany |
Shipping Info
Package Weight
0.238
