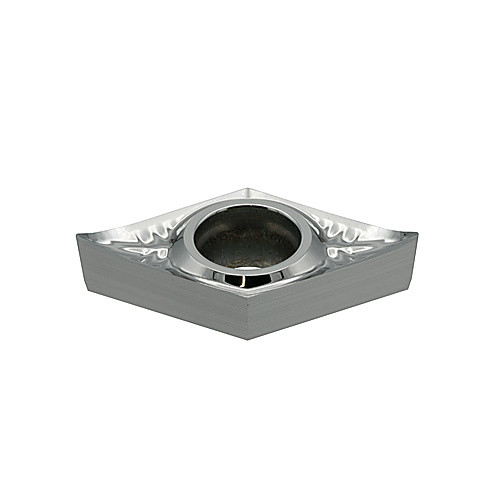

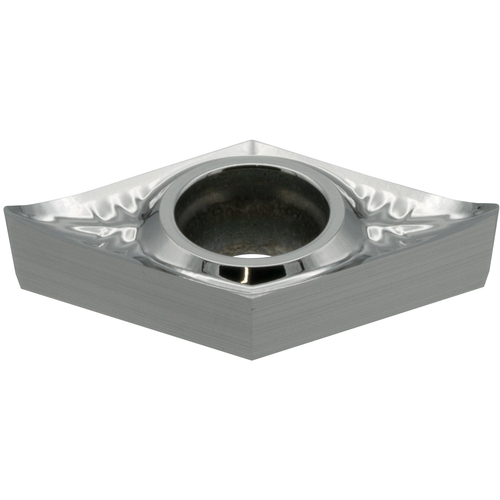

DCGT21.51NAG H1, 0.016″ Corner Radius, 0.094″ Thick, 1/4″ Inscribed Circle, Uncoated, 55 Degree Diamond, Turning Insert
Turning Insert; 55 Diamond × 1/4″ IC × 0.016″ Corner Radius ; H1 ; Carbide ; Uncoated
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | | Grade | H1 |
| Insert Style | DCGT | Fixing Hole Diameter (D1) | 0.11″ |
| Corner Radius (RE) | 0.016″ | Tool Type | Turning Insert |
| Insert Size | 21.51 | Clearance Angle Major (AN) | 7 Degrees |
| Cutting Edge Length (L) | 0.3031″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.094″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | NAG |
| Cutting Edge Material | Carbide | Shape | 55° Diamond |
| Coating | Uncoated |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.06
