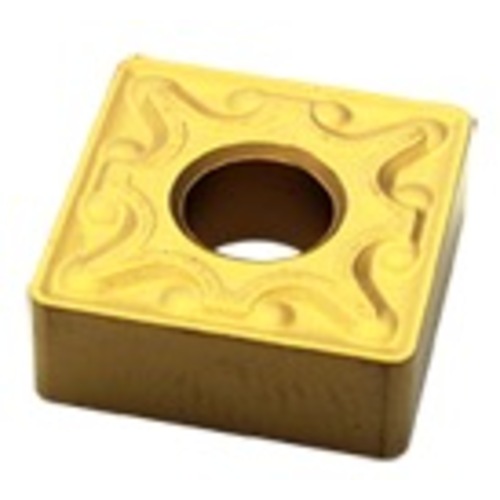

SNMG 322 Grade PC300 - Turning Insert
Turning Insert; Square ; 3/8″ Length × 3/8″ IC × 0.031″ Corner Radius ; PC300 ; Carbide
| Applicable Material | | Steel | | Inscribed Circle Diameter (IC) | 3/8″ |
| Insert Style | SNMG | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.031″ | Grade | PC300 |
| Insert Size | 322 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 3/8″ | Shape | Square |
| Insert Thickness (S) | 1/8″ |
Product Features
| Remarks | •SNMG Square Negative Molded Chipbreaker •Double-sided, for semi-roughing and roughing. •Chip breaking in feed range from .007 to .024 ipr. •For a wide range of materials and machining conditions. •Inserts with .094 in corner radius have a special chipformer for heavy machining. | Country of Origin | S.Korea |
Shipping Info
Package Length
.37000
Package Width
.37000
Package Height
.12000
Package Weight
0.025
