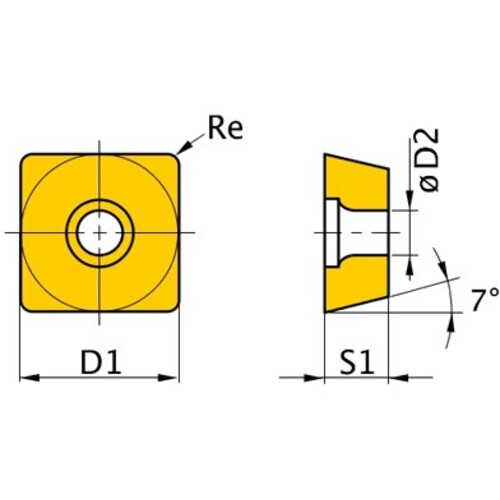

SCMT 32.52 LP NX2525, 0.8 mm Corner Radius, 3.97 mm Thick, 9.525 mm Inscribed Circle, Turning Indexable Insert
Turning Insert; Square x 9.525 mm IC × 0.8 mm Corner Radius ; NX2525 ; Cermet
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Fixing Hole Diameter (D1) | 4.4 mm |
| Application | Light Cutting | Tool Type | Turning Insert |
| Insert Style | SCMT | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 0.8 mm | Cutting Direction (HAND) | Neutral |
| Insert Size | 32.52 | Chip Breaker Type | LP |
| Insert Thickness (S) | 3.97 mm | Quantity | 10 |
| Inscribed Circle Diameter (IC) | 9.525 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Shape | Square |
| Cutting Edge Material | Cermet | Series/List # | NX2525 |
| Grade | NX2525 |
Product Features
| Country of Origin | Japan |
