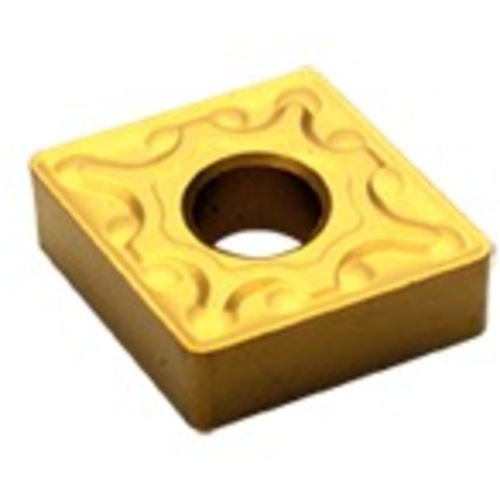

CNMG432 PC2 CARBIDE
Turning Insert; CNMG432 PC2 ; 0.508″ Length ; 1/2″ IC ; 0.031″ Corner Radius ; Carbide
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Insert Thickness (S) | 0.187″ |
| Insert Style | CNMG | Inscribed Circle Diameter (IC) | 1/2″ |
| Corner Radius (RE) | 0.031″ | Cutting Edge Material | Carbide |
| Insert Size | 432 | Grade | PC2 |
| Cutting Edge Length (L) | 0.508″ | Tool Type | Turning Insert |
Product Features
| Remarks | •CNMG 80° Diamond Negative with Molded Chipbreaker •Double-sided for semi-roughing and roughing. •Chip breaking in feed range from .007 to .024 ipr. •For a wide range of materials and machining conditions. •Inserts with .094 in corner radius have a special chipformer for heavy machining. | Country of Origin | S.Korea |
Shipping Info
Package Length
3.87500
Package Width
1.62500
Package Height
.43750
Package Weight
0.022
