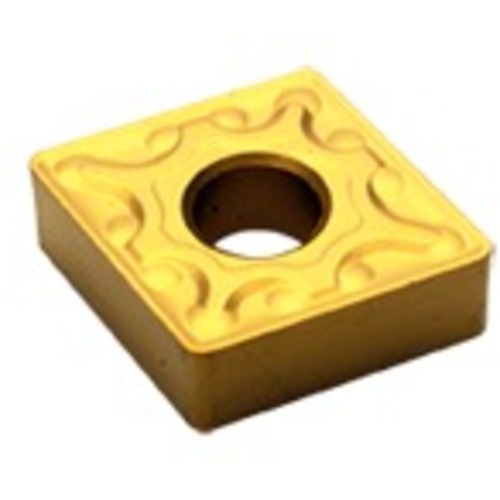

CNMG 643 Grade PC300 - Turning Insert
Turning Insert; 80 Diamond ; 0.76″ Length × 3/4″ IC × 0.047″ Corner Radius ; PC300 ; Carbide
| Applicable Material | | Steel | | Inscribed Circle Diameter (IC) | 3/4″ |
| Insert Style | CNMG | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.047″ | Grade | PC300 |
| Insert Size | 643 | Tool Type | Turning Insert |
| Cutting Edge Length (L) | 0.76″ | Shape | 80° Diamond |
| Insert Thickness (S) | 1/4″ |
Product Features
| Remarks | •CNMG 80° Diamond Negative with Molded Chipbreaker •Double-sided for semi-roughing and roughing. •Chip breaking in feed range from .007 to .024 ipr. •For a wide range of materials and machining conditions. •Inserts with .094 in corner radius have a special chipformer for heavy machining. | Country of Origin | S.Korea |
Shipping Info
Package Length
1.11000
Package Width
.94000
Package Height
.25000
Package Weight
0.05
