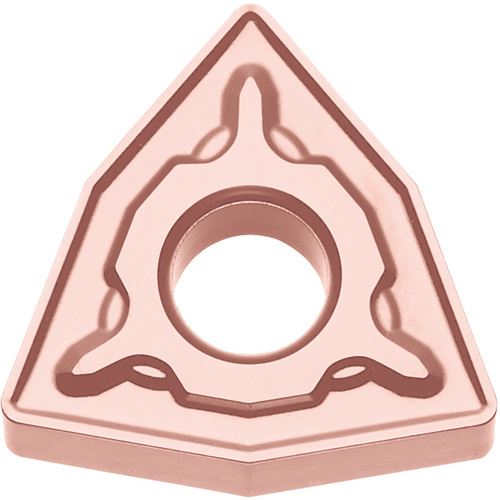

WNMG 432 PH CA320, 1/32″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCnulll2O3/Ti, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 1/2″ IC × 1/32″ Corner Radius ; CA320 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Cast Iron | | Grade | CA320 |
| Application | External Turning | Facing | Boring | Internal Facing | Fixing Hole Diameter (D1) | 0.2031″ |
| Insert Style | WNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/32″ | Number of Cutting Edges | 6 |
| Insert Size | 432 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | PH |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Trigon |
| Cutting Edge Material | Carbide | Series/List # | CA3-Series |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | Alternate Manufacture # WNMG432PHCA320 | Country of Origin | Japan |
Shipping Info
Package Weight
.2438
