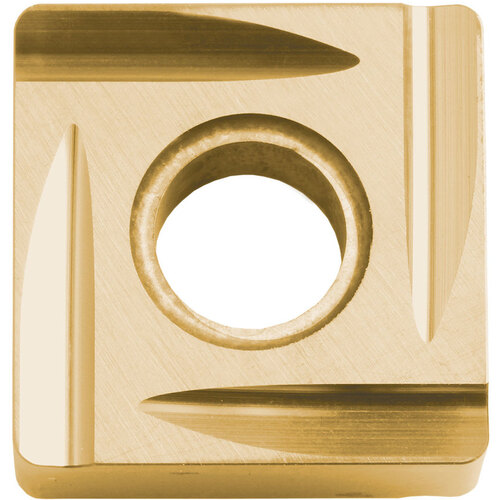

SNMG 431 C PV710, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN (MEGACOAT NANO), Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 1/64″ Corner Radius ; PV710 ; Cermet ; TiCN
| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Chamfering | Boring | Grade | PV710 |
| Insert Style | SNMG | Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | C |
| Cutting Edge Material | Cermet | Shape | Square |
Product Features
| Family Description | Alternate Manufacture # SNMG431LCPV710 | Country of Origin | Japan |
Shipping Info
Package Weight
.1230
