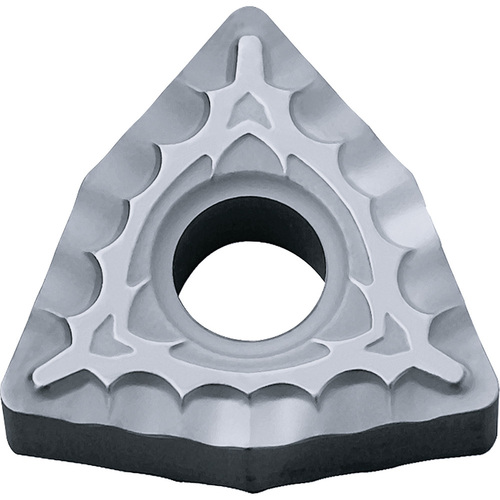

WNMG 431 XQ TN610, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCN, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 1/2″ IC × 1/64″ Corner Radius ; TN610 ; Cermet ; TiCN
| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | TN610 |
| Insert Style | WNMG | Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | XQ |
| Cutting Edge Material | Cermet | Shape | Trigon |
Product Features
| Family Description | Alternate Manufacture # WNMG431XQTN610 | Country of Origin | Japan |
Shipping Info
Package Weight
.1292
