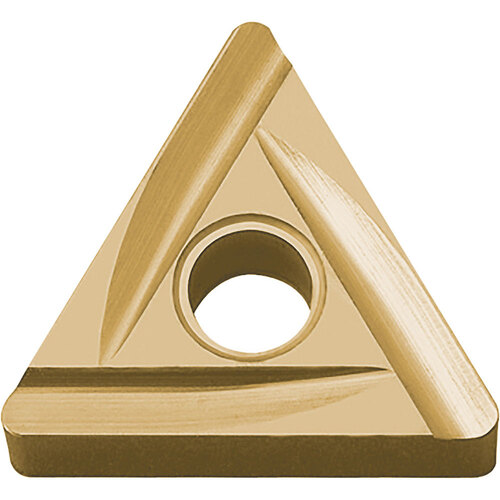

TNGG 221 B PV710, 1/64″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN (MEGACOAT NANO), Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 1/64″ Corner Radius ; PV710 ; Cermet ; TiCN
| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Up Facing | Copying | Chamfering | Boring | Grade | PV710 |
| Insert Style | TNGG | Fixing Hole Diameter (D1) | 0.089″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 221 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 1/4″ | Chip Breaker Type | B |
| Cutting Edge Material | Cermet | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TNGG221RBPV710 | Country of Origin | Japan |
Shipping Info
Package Weight
.0465
