SNGG 321 B PV710, 1/64″ Corner Radius, 1/8″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT NANO), Square, Turning Indexable Insert
Turning Insert; Square x 3/8″ IC × 1/64″ Corner Radius ; PV710 ; Cermet ; TiCN

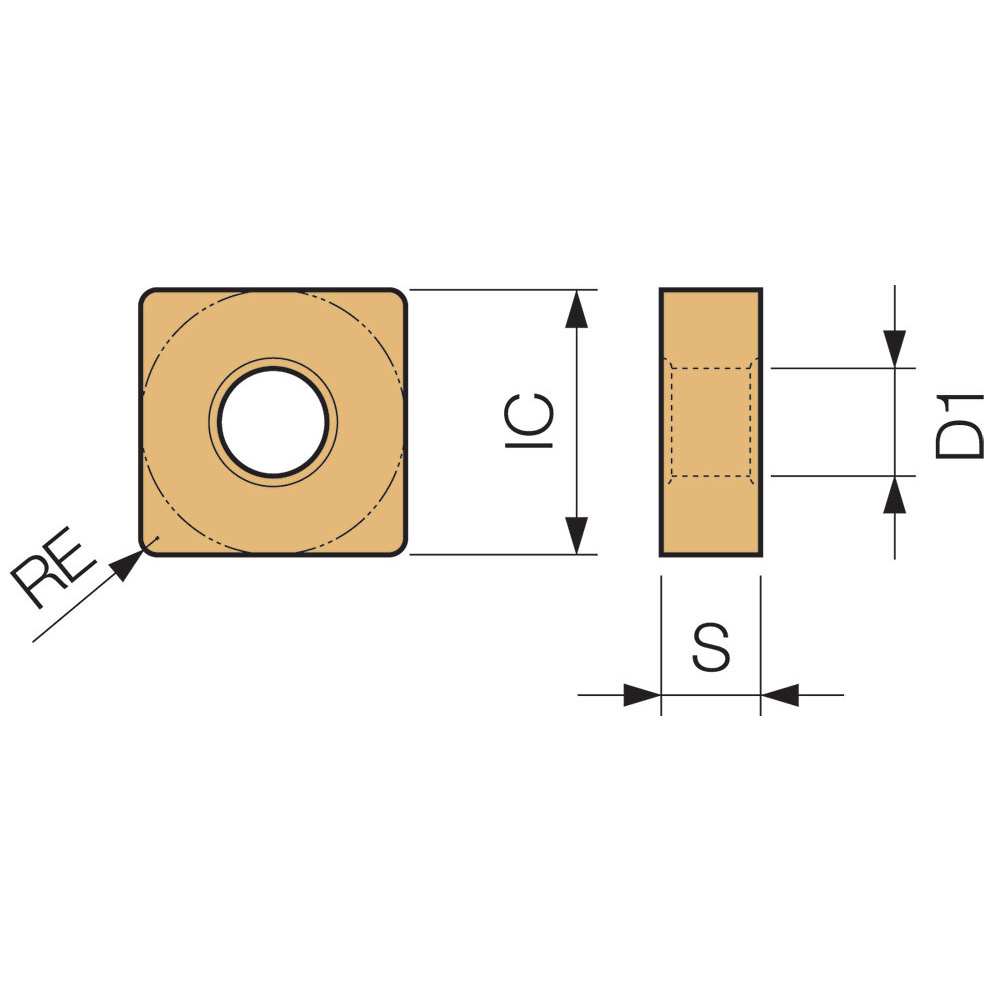

| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Chamfering | Boring | Grade | PV710 |
| Insert Style | SNGG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 321 | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | B |
| Cutting Edge Material | Cermet | Shape | Square |
Product Features
| Family Description | Alternate Manufacture # SNGG321LBPV710 | Country of Origin | Japan |
Shipping Info
Package Weight
.0646
Related Documentation
