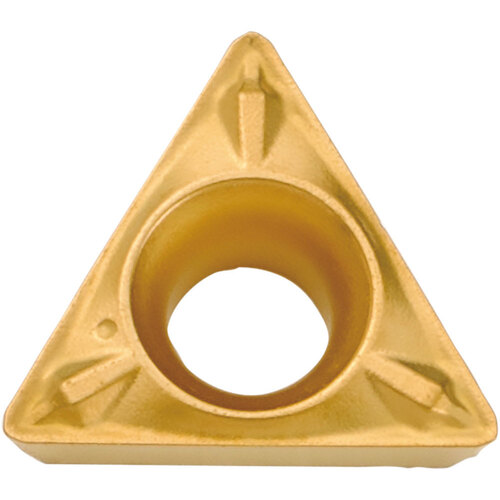

TCMX 2151 WP CA530, 1/64″ Corner Radius, 3/32″ Thick, 1/4″ Inscribed Circle, TiCnulll2O3/TiN, Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 1/64″ Corner Radius ; CA530 ; Carbide ; | Al2O3 | TiN | TiCN |

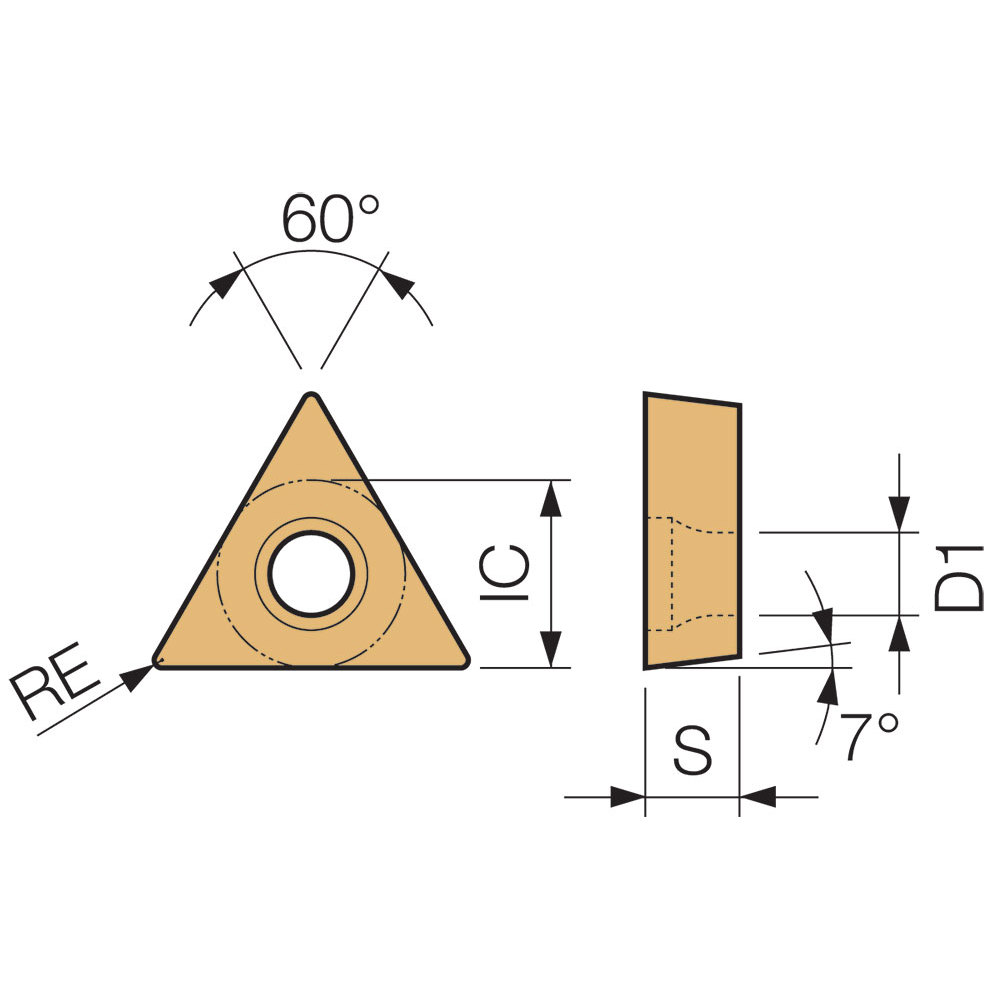

| Applicable Material | | Steel | | Grade | CA530 |
| Application | External Turning | Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | TCMX | Clearance Angle Major (AN) | 7 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 3 |
| Insert Size | 2151 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/32″ | Chip Breaker Type | WP |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Triangle |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # TCMX2151WPCA530 | Country of Origin | Japan |
Shipping Info
Package Weight
.0608
