VBMT 331 PP CA530, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCnulll2O3/TiN, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/64″ Corner Radius ; CA530 ; Carbide ; | Al2O3 | TiN | TiCN |
| Applicable Material | | Steel | | Grade | CA530 |

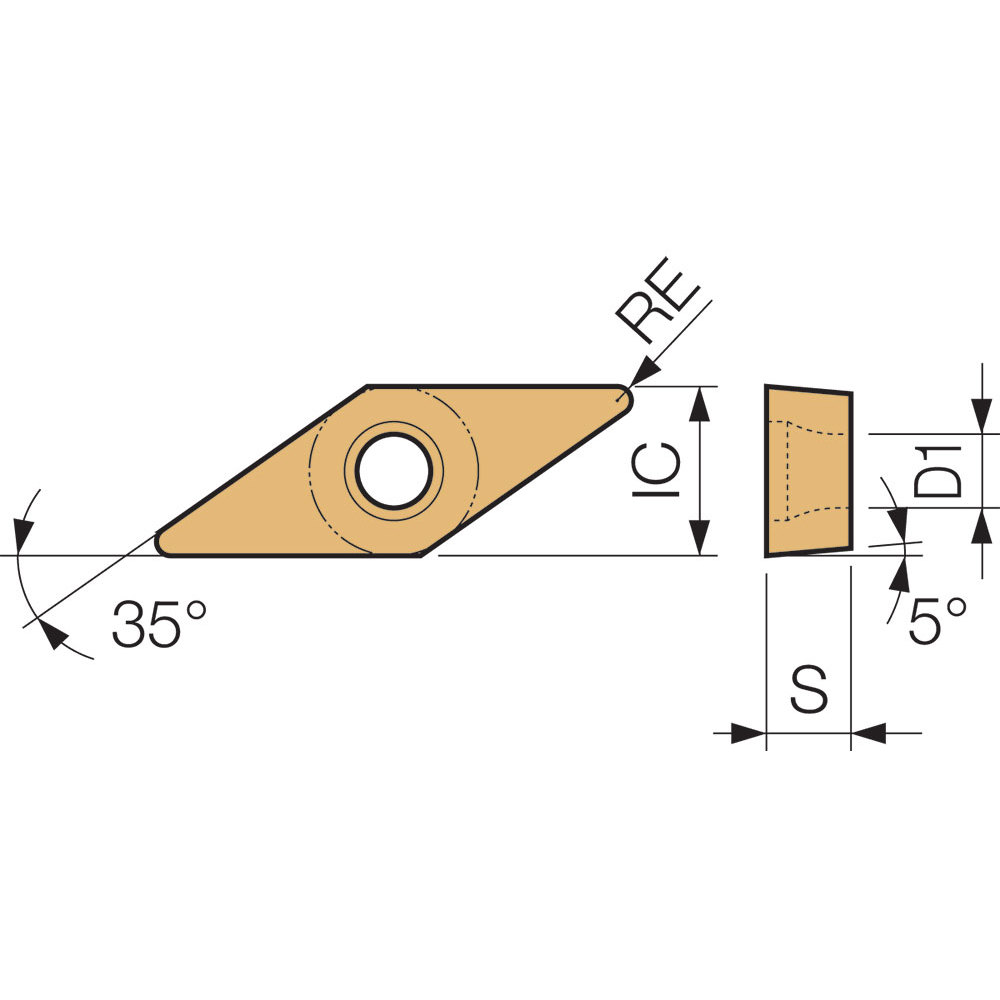

| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Fixing Hole Diameter (D1) | 0.1732″ |
| Insert Style | VBMT | Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 1/64″ | Number of Cutting Edges | 2 |
| Insert Size | 331 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | PP |
| Inscribed Circle Diameter (IC) | 3/8″ | Shape | Diamond |
| Cutting Edge Material | Carbide | Series/List # | CA5-Series |
| Coating | | Al2O3 | TiN | TiCN | |
Product Features
| Family Description | Alternate Manufacture # VBMT331PPCA530 | Country of Origin | Japan |
Shipping Info
Package Weight
.2105
