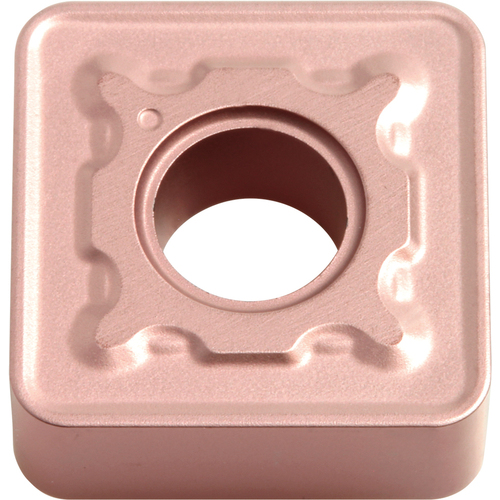

SNMG 434 PH CA320, 1/16″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, TiCnulll2O3/Ti, Square, Turning Indexable Insert
Turning Insert; Square x 1/2″ IC × 1/16″ Corner Radius ; CA320 ; Carbide ; | Al2O3 | TiCN |
| Applicable Material | | Cast Iron | | Grade | CA320 |
| Application | External Turning | Facing | Chamfering | Boring | Fixing Hole Diameter (D1) | 0.2031″ |
| Insert Style | SNMG | Clearance Angle Major (AN) | 0 Degrees |
| Corner Radius (RE) | 1/16″ | Number of Cutting Edges | 8 |
| Insert Size | 434 | Cutting Direction (HAND) | Neutral |
| Insert Thickness (S) | 3/16″ | Chip Breaker Type | PH |
| Inscribed Circle Diameter (IC) | 1/2″ | Shape | Square |
| Cutting Edge Material | Carbide | Series/List # | CA3-Series |
| Coating | | Al2O3 | TiCN | |
Product Features
| Family Description | Alternate Manufacture # SNMG434PHCA320 | Country of Origin | Japan |
Shipping Info
Package Weight
.2394
