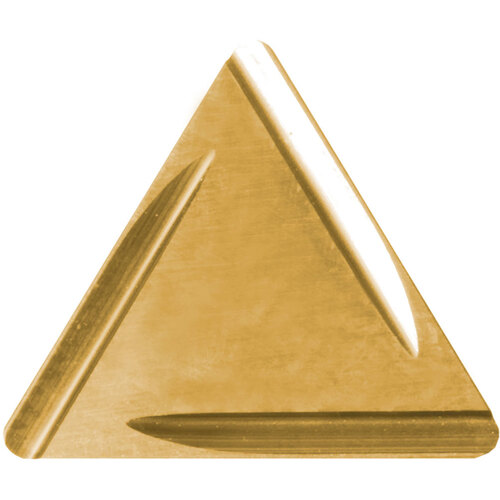

TPGR 2205 A PV720, 0.0079″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, TiCN (MEGACOAT NANO), Triangle, Turning Indexable Insert
Turning Insert; Triangle x 1/4″ IC × 0.0079″ Corner Radius ; PV720 ; Cermet ; TiCN
| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Boring | Internal Facing | Copying | Back Boring | Grade | PV720 |
| Insert Style | TPGR | Clearance Angle Major (AN) | 11 Degrees |
| Corner Radius (RE) | 0.0079″ | Number of Cutting Edges | 3 |
| Insert Size | 2205 | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ | Chip Breaker Type | A |
| Inscribed Circle Diameter (IC) | 1/4″ | Shape | Triangle |
| Cutting Edge Material | Cermet |
Product Features
| Family Description | Alternate Manufacture # TPGR2205LAPV720 | Country of Origin | Japan |
Shipping Info
Package Weight
.0485
