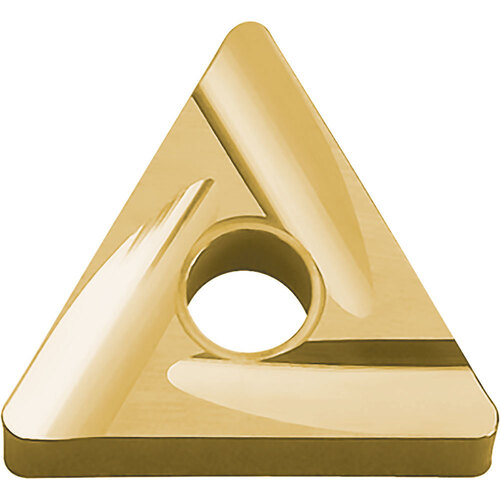

TNGG 331 25R PV720, 1/64″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, TiCN (MEGACOAT NANO), Triangle, Turning Indexable Insert
Turning Insert; Triangle x 3/8″ IC × 1/64″ Corner Radius ; PV720 ; Cermet ; TiCN
| Applicable Material | | Steel | | Coating | TiCN |
| Application | External Turning | Facing | Up Facing | Copying | Chamfering | Boring | Grade | PV720 |
| Insert Style | TNGG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 331 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | 25R |
| Cutting Edge Material | Cermet | Shape | Triangle |
Product Features
| Family Description | Alternate Manufacture # TNGG331L25RPV720 | Country of Origin | Japan |
Shipping Info
Package Weight
.1107
