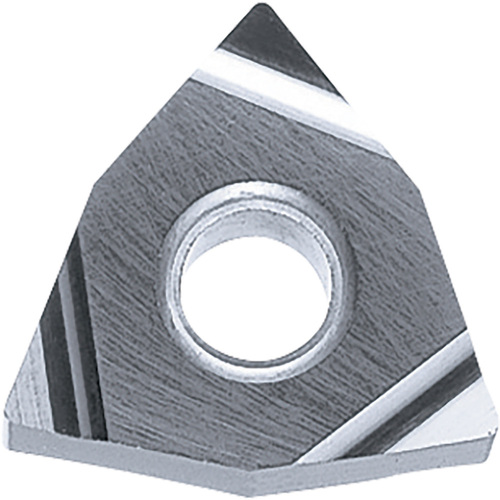

WNGG 3305 S KW10, 0.0079″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, Trigon, Turning Indexable Insert
Turning Insert; Trigon x 3/8″ IC × 0.0079″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Facing | Boring | Internal Facing | Grade | KW10 |
| Insert Style | WNGG | Fixing Hole Diameter (D1) | 0.15″ |
| Corner Radius (RE) | 0.0079″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 3305 | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | S |
| Cutting Edge Material | Carbide | Shape | Trigon |
Product Features
| Family Description | Alternate Manufacture # WNGG3305LSKW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.1579
