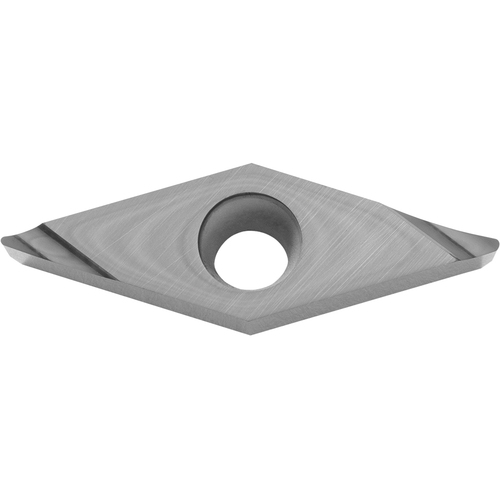

VCGT 332 A3 KW10, 1/32″ Corner Radius, 3/16″ Thick, 3/8″ Inscribed Circle, WC/Co, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 3/8″ IC × 1/32″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Copying | Facing | Undercutting | Profiling | Internal Facing | Back Boring | Grade | KW10 |
| Insert Style | VCGT | Fixing Hole Diameter (D1) | 0.1732″ |
| Corner Radius (RE) | 1/32″ | Clearance Angle Major (AN) | 7 Degrees |
| Insert Size | 332 | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Right Hand |
| Inscribed Circle Diameter (IC) | 3/8″ | Chip Breaker Type | A3 |
| Cutting Edge Material | Carbide | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # VCGT332RA3KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.2293
