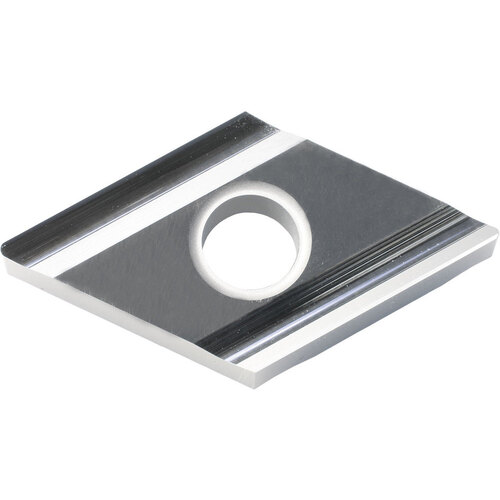

DNGG 431 A3 KW10, 1/64″ Corner Radius, 3/16″ Thick, 1/2″ Inscribed Circle, WC/Co, Diamond, Turning Indexable Insert
Turning Insert; Diamond x 1/2″ IC × 1/64″ Corner Radius ; KW10 ; Carbide ; Uncoated
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Coating | Uncoated |
| Application | External Turning | Copying | Boring | Grade | KW10 |
| Insert Style | DNGG | Fixing Hole Diameter (D1) | 0.2031″ |
| Corner Radius (RE) | 1/64″ | Clearance Angle Major (AN) | 0 Degrees |
| Insert Size | 431 | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 3/16″ | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 1/2″ | Chip Breaker Type | A3 |
| Cutting Edge Material | Carbide | Shape | Diamond |
Product Features
| Family Description | Alternate Manufacture # DNGG431LA3KW10 | Country of Origin | Japan |
Shipping Info
Package Weight
.2965
